Spice 1210 Socapex

Part No:
160120

Manufacturer:
Zero 88  01-300-42

Description:

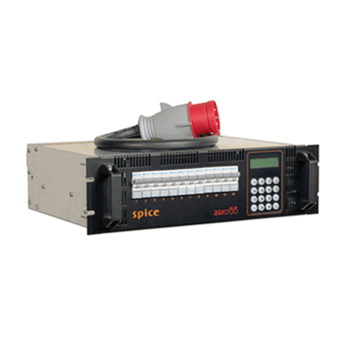

A portable 19" rack mounting lighting control dimmer.

Technical Specifications:

Number of Channels: 12
Channel Capacity: 0.1A min/10A max
Total Dimmer Capacity: 120 A (40A per phase, limited to 32A per phase by mains connector)
Dimmer Duty Cycle: 100%
Dimmer Curves: Normal, Linear, Switch or Square
Memories: 12
Sequences: 3
Areas/zones: 10
Programable Channel Attributes: Topset per channel, DMX address per channel or as a block (12 channels), Preheat per channel (0 – 20%)
Dimmer lock out function
Supply Voltage: 190-255V
Operates on single phase or 3 Phase Star
Voltage and Frequency displays: Supply Frequency: 45 to 70Hz auto-sensing and auto- tracking, Phase Control Rise Time: 80mS
Control Input: USITT DMX512-A In and through via 5pin XLR connectors, with selectable DMX termination
Channel Outlets: Can be supplied as either 2 x Socapex or 2 x Harting Connectors
Power Connection: Supplied with 1.2m of 5 core 6mm2 H07RN-F cable terminating in a three-phase (5 pin) CEE17 32A connector
Channel Protection: 10A neutral disconnect thermal magnetic circuit breaker per channel, breaking capacity 6000A
Dimmer Protection: Hardware protected 440V Phase to Neutral, software overvoltage protection of outputs
Resettable transfomer fuses
In three phase use, continued operation during loss of one phase
Cooling: Dual fan cooled. Fan under user control with temperature monitoring
Dimensions: 132mm (H) x 483mm (W) x 420mm (D)
Weight: 14.5Kg (32lb)
Operating Temperature : +5ºC to +40ºC
Humidity : 5% to 95% Non condensing
