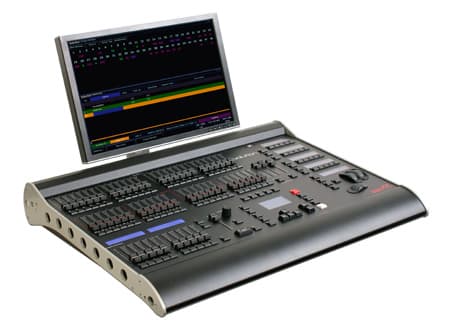

Zero 88 Solution Lighting Desk

Part No:
160002

Manufacturer:
Zero 88  00-868-00

Description:
A lighting control console offering control of generic and moving lights across 248 channels and 2048 channels. Features advanced lighting effects, networking and external touchscreen and multimedia support.

Technical Specifications:

Fixtures: 248
Control Channels: 2048, patchable to any combination of fixtures/dimmers
DMX Output: 4 x DMX512-A opto- isolated via 4 x XLR 5 fixed socket, overvoltage protected. RDM Enabled
Ethernet protocols (RJ45 port): Art-Net (4 universes), sACN (4 universes), Zero Wire DMX, LightConverse, Capture, WYSIWYG, Remotes, Tracking Backup
DMX Input: 1x DMX512-A
Submaster Faders: 200 (10 faders x 20 pages). Submasters also available via DMX In
Channel Faders: 48
Grand Master & Blackout Button: Yes
Channel Preset Master Faders: 2
Fixture Control Wheels: 3
On-board LCDs: 8x negative mode blue, white LED backlight
Memories: 10,000
Palettes: 1600 (400 each of Colour/Beam/ Position/Effects)
Groups: 400
Macros: 400
Online Help: Yes
Power Supply (supplied): External Power Supply, +12VDC, +5VDC
Mains inlet via CEE22 connector, connection to lighting desk via 4 pole locking XLR with switch on desk
Supply Voltage: 100-260VAC, 47-63Hz
Audio Input: Stereo 1/4”, Jack socket, 100mV - 10V
Monitor Output: XGA output via standard 15pin D connector
Upto 4 additional monitors available via Ethernet remote
USB Ports: 4 x USB ports (1 on front panel, 3 on rear panel)
Data Storage, Mouse, Keyboard, Touch screens via USB
Remotes: via Ethernet, iOS, Android, Windows Mobile and Windows PC devices are supported
Dimensions: 115mm(H) x 765mm(W) x 575mm(D)
Weight: 16.0Kg (35lb)
Operating environment: +5ºC to +40ºC (41ºF to 104ºF)
Humidity: 5% to 95% Non-condensing

For more information and technical details please click (here)
